[Footwear] Cutting up shoes to measure their carbon footprint

Each part of a shoe is made of a different material, such as rubber, leather, or plastic. A shoe’s mass is not evenly distributed across its parts. For instance, outsoles are often the heaviest part. They are commonly made of rubber, which usually has the largest environmental impact.

Published on

May 24, 2024

Written by

Max Halford

Category

Knowledge

blog_banner

Table of content

Our mission at Carbonfact is to measure the environmental impact of textiles and footwear. This involves a lot of steps. The main one is to determine what materials a product is made of, along with each material’s mass. The weight of a product is probably the most important input when calculating its environmental footprint. It has a direct influence on the amount of material needed, the required packaging, as well as the transportation cost.

Challenges in measuring footwear  footprint

This is straightforward for most clothes like jumpers and pants. These are typically made of a single fabric, such as cotton or polyester. The mass of each material is roughly the same as the product’s mass.

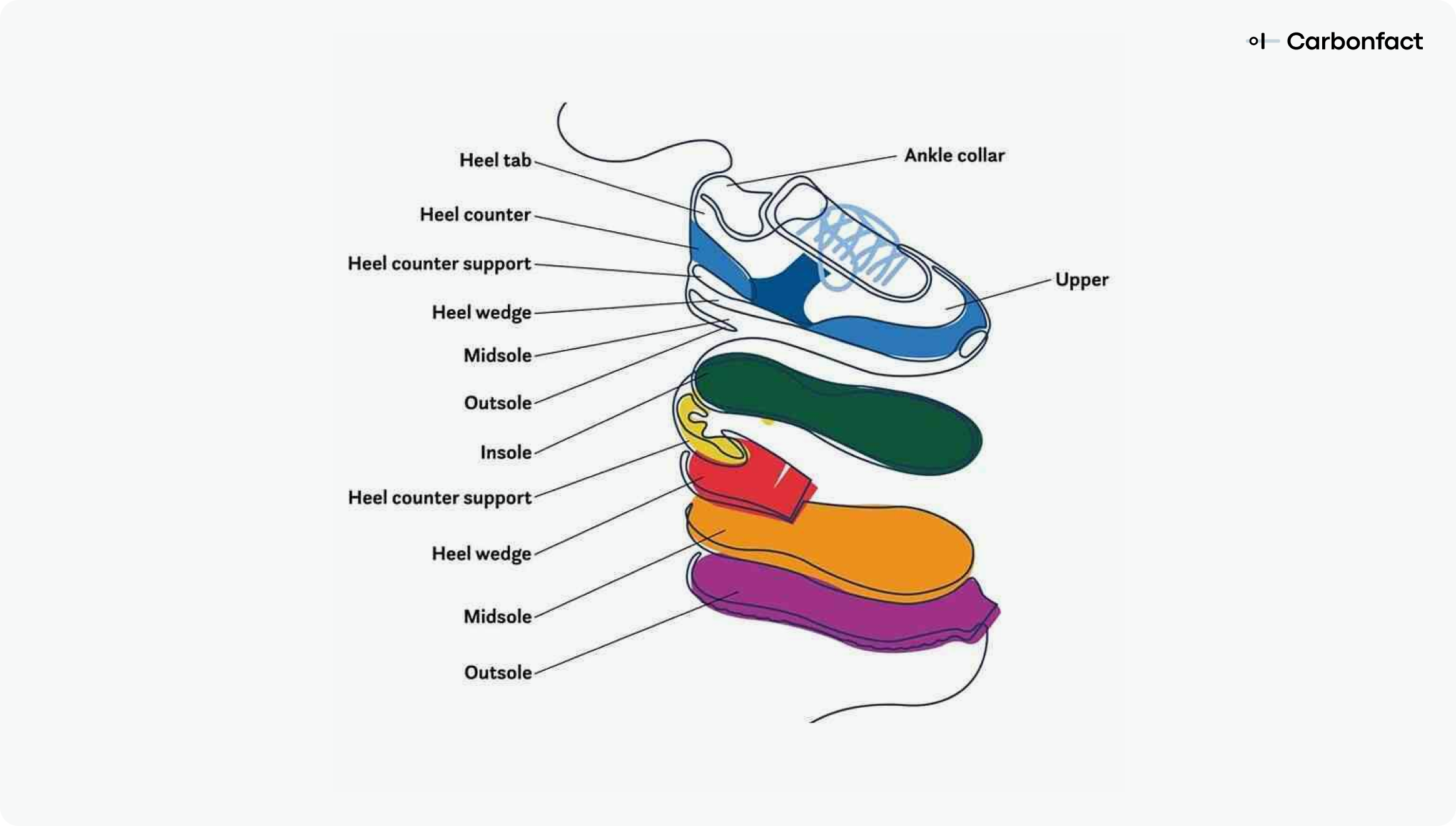

Footwear products are a different beast, mainly because they contain many parts. For instance, the sneakers we measure contain anywhere between 30 and 80 individual parts. Some parts are found in most shoes (e.g. outsoles, vamps, laces), while others are specific to some shoes (e.g. shanks, gussets, mudguards).

Each part of a shoe is made of a different material, such as rubber, leather, or plastic. A shoe’s mass is not evenly distributed across its parts. For instance, outsoles are often the heaviest part. They are commonly made of rubber, which usually has the largest environmental impact.

Untitled (3)_11zon

Source: Hohenstein

Measuring the environmental footprint of a pair of shoes is difficult for a couple of reasons.

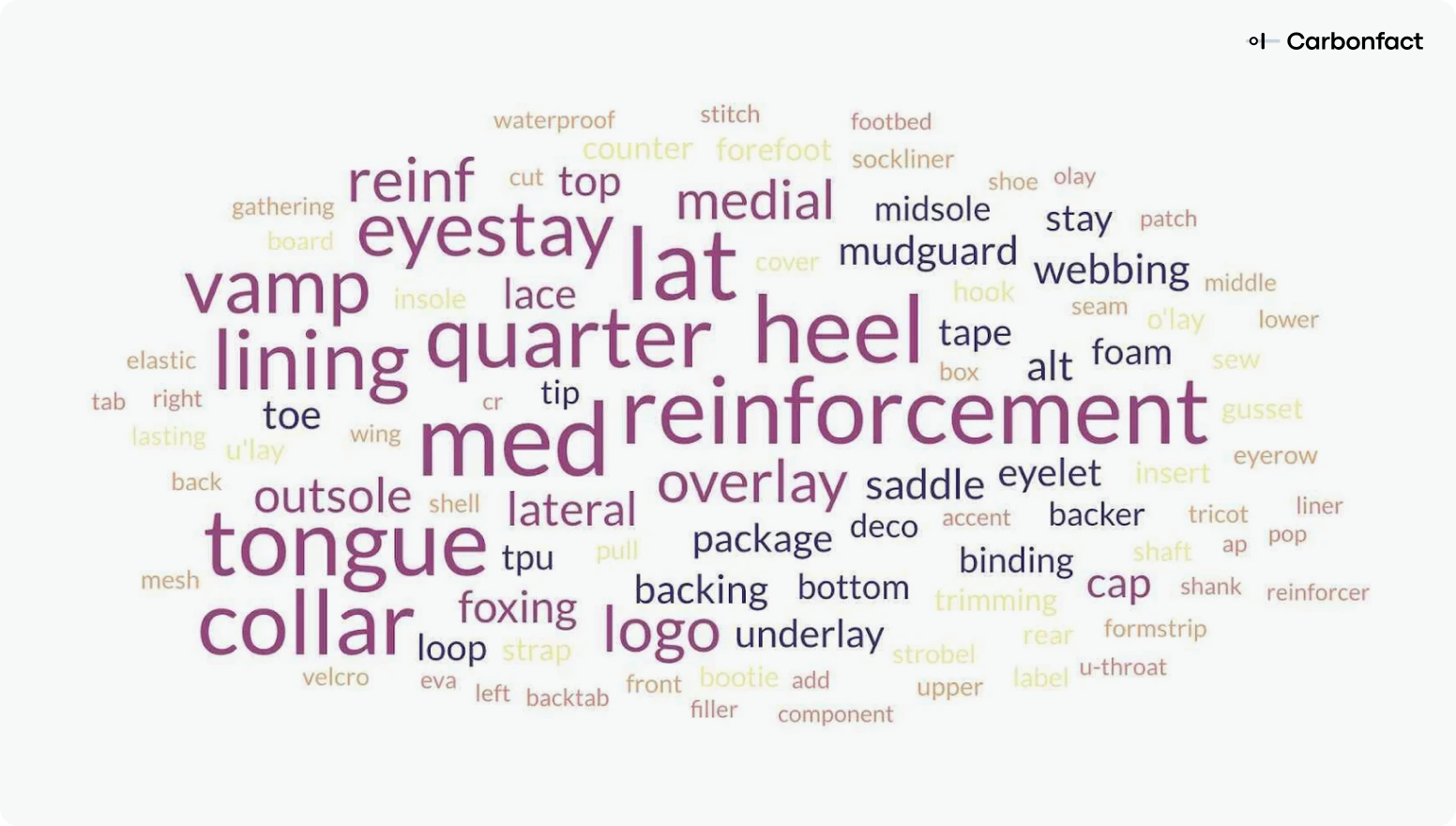

First, there is no agreed-upon taxonomy of shoe part names. Each customer we work with uses a different one. And in most cases they’re not even using a taxonomy: it’s just free text fields. Here’s a word cloud that gives an idea of the variety of names we encounter.

Untitled_11zon

Second, footwear companies don’t always know the mass of each part. They might know the mass of the product, because that is required for shipping and inventory management. This is a problem because a shoe can contain several materials, spread across different parts. The mass of each material has a direct impact on the product’s environmental footprint.

This second problem can be alleviated by addressing the first one. We could build a database of shoe parts with their corresponding mass, when the latter is available. In case the mass of a part in a new pair of shoes isn’t available, we could look up the typical mass of the given part in the database. This requires mapping the free text part names to an agreed-upon taxonomy.

Creating a shoe parts taxonomy

Mapping free text names to a taxonomy is a classification task. We could use a machine learning model to do this. Alas, this requires having a taxonomy available, which we don’t have. The modern way to circumvent this could be to use clustering to bucket the free text names into groups. We could then use zero-shot classification to build a training set for a classification model. What about doing it the old-fashioned way? That’s what we did during our latest work offsite at Carbonfact. We got together in a room and did a card sorting exercise. The part names were printed out on pieces of paper that we laid out on a long kitchen table. Everyone took part and sorted the papers into groups, which we defined together on the fly. We recorded the taxonomy and the mapping in a shared spreadsheet.

Untitled (1)_11zon

Untitled (2)_11zon (1)

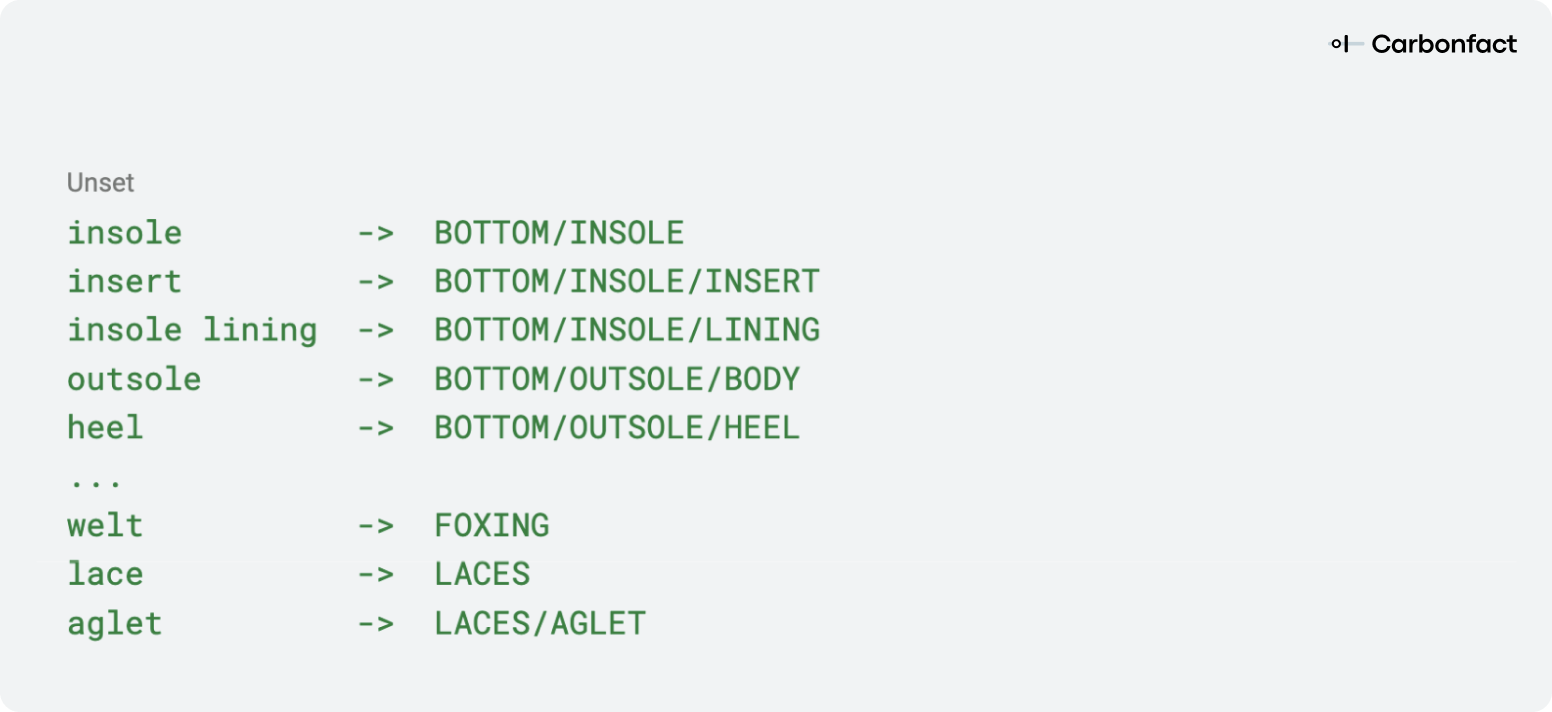

After a few iterations, we reached a list of roughly fifty part names, which were organized in a hierarchical taxonomy:

Screenshot 2024-05-23 at 15.09.09

A hierarchical taxonomy is useful because it allows handling parts with different levels of granularity. For instance, sometimes the mass is available for the bottom part of the shoe as a whole, but not for the outsole and the midsole separately. To me, this is a good example of Postel’s law: be conservative in what you do, be liberal in what you accept from others.

Carbonfact: Hands-on workshop

The next step was a bit more fun. We grabbed some cutters and scissors and took the shoes apart. A fair amount of us brought an old pair of shoes with us to the offsite, which gave us a variety of sneakers and boots to work with. We cut up each shoe and weighed every part using a kitchen scale. We then assigned each part to a group in the taxonomy. This resulted in a valuable dataset of shoe parts with their masses.

Untitled (4)_11zon

Having a big table helped!

Untitled (5)_11zon

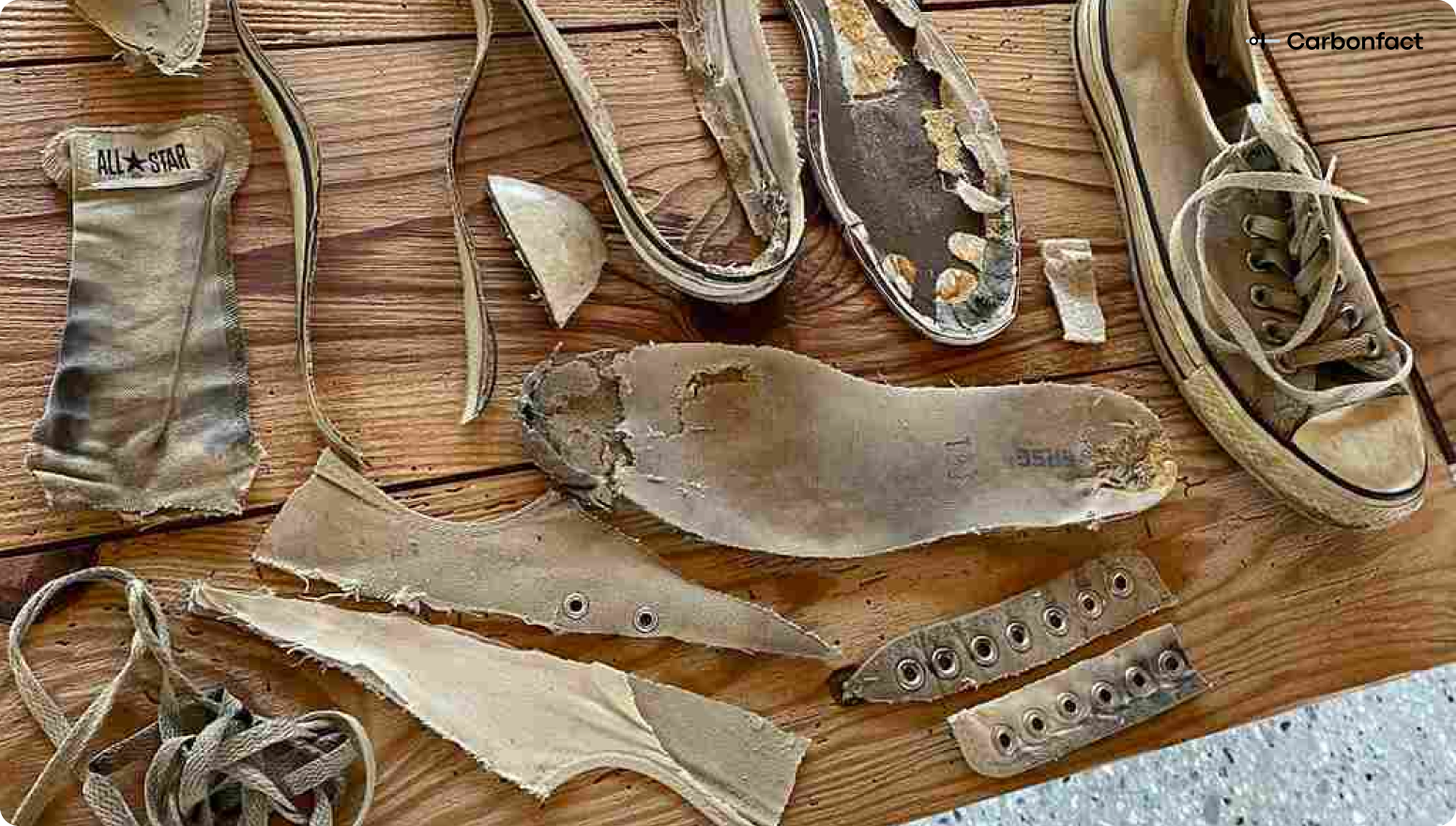

Martin's Converse sneakers

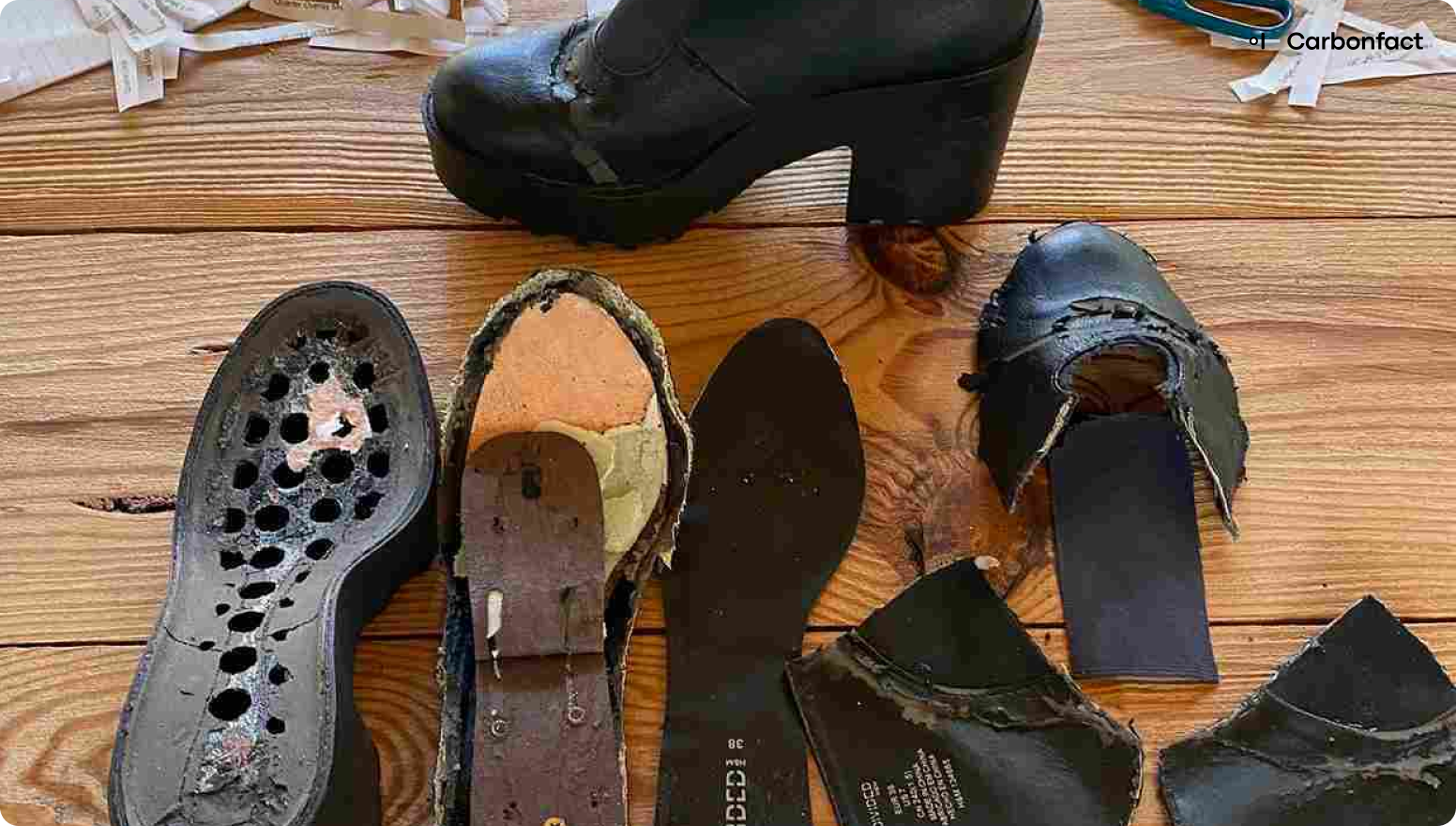

Untitled (6)_11zon

Tess' H&M boots

Untitled (7)_11zon

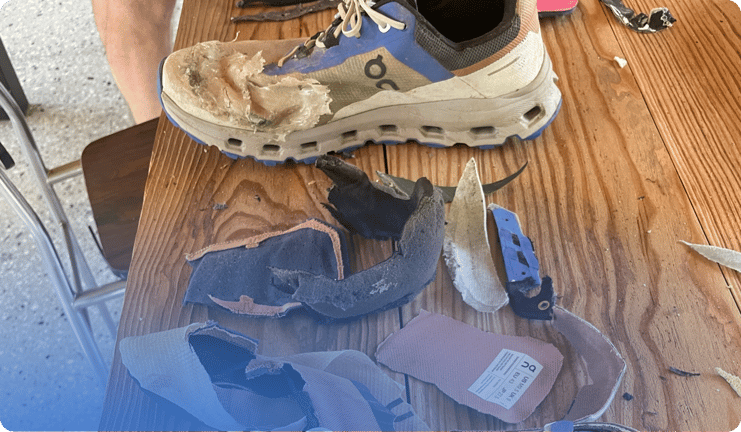

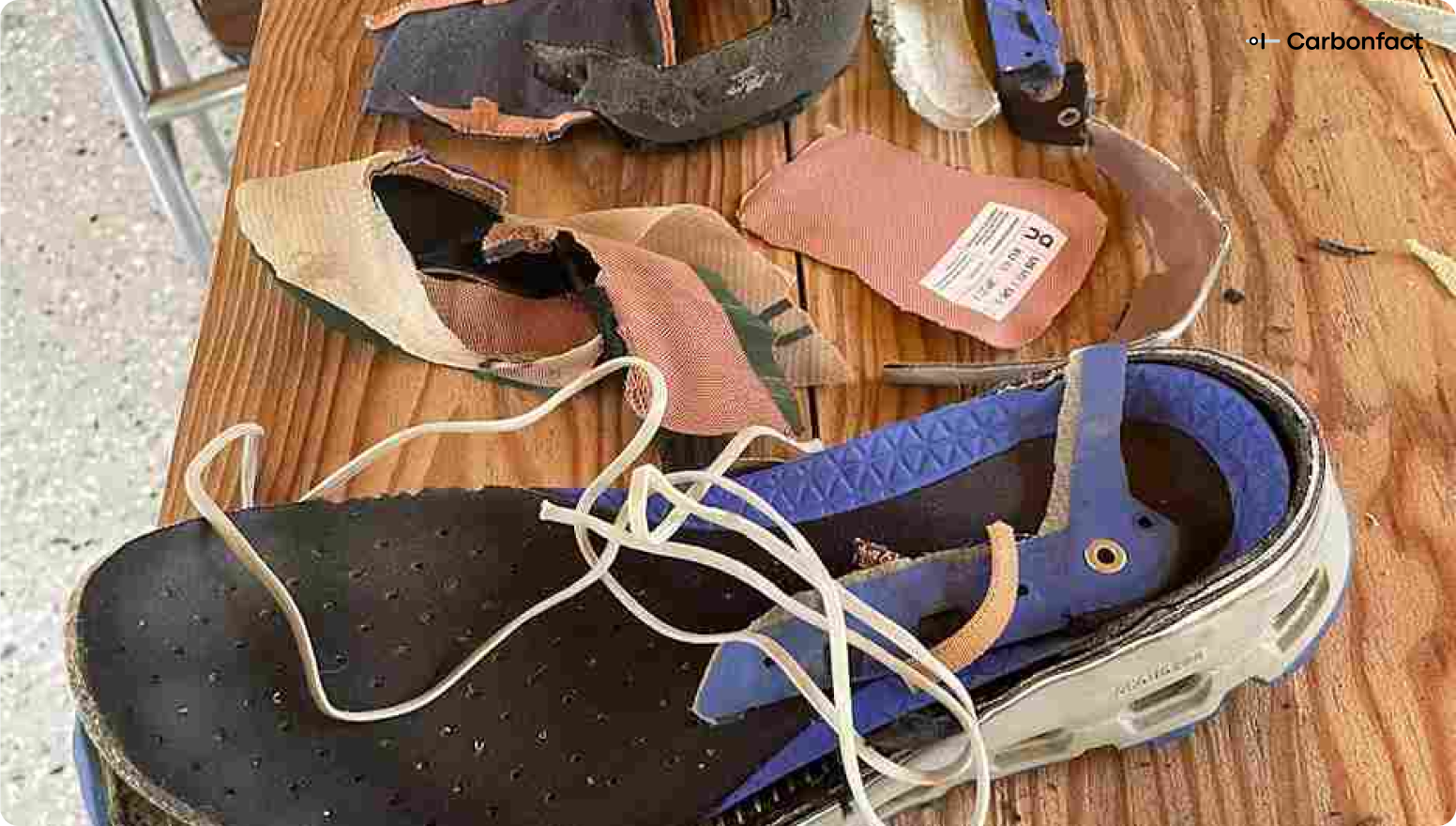

Laurent's On trail shoes

This workshop was a good investment of our time. In practice, it’s going to make our footwear data model much more robust. We can now map free text part names to a standardized taxonomy, which in turn allows us to handle each part in a bespoke manner. I will be able to leverage the work we did to build a machine-learning classifier in order to scale the process. Our footwear customers (e.g Allbirds, New Balance, La Sportiva) will massively benefit from this.

As a data scientist, I spend most days manipulating data with my computer. It was refreshing to do something physical, by actually touching and manipulating the actual objects behind the data. It was also a great team-building exercise. We had a lot of fun cutting up shoes and discussing the best way to group them. I can’t wait for the next offsite!

About Carbonfact

Carbonfact is an environmental management platform for footwear and apparel companies. More than 150 brands and suppliers, such as Allbirds, New Balance, and La Sportiva, use Carbonfact to measure, report, and reduce their environmental impact.

Carbonfact automates the tedious data collection, product footprint measurement and reporting process, addressing the industry's challenge of collecting accurate and primary data from multiple tiers of the supply chain.
